Regimes & Pumps

Reaching ultra-high vacuum takes a chain of pumps, each handing the gas to the next, across more than fifteen decades, with a change of flow regime near 10⁻³ Torr.

Below about 10⁻³ Torr the gas stops behaving like a fluid. The mean free path grows past the size of the chamber, molecules quit colliding with each other and fly straight from wall to wall. Below that pressure, pumping means catching molecules on surfaces and dealing with how much gas the walls give back. This block is the map, then the pumps.

Pressure in Torr (1 Torr ≈ 1.33 mbar).

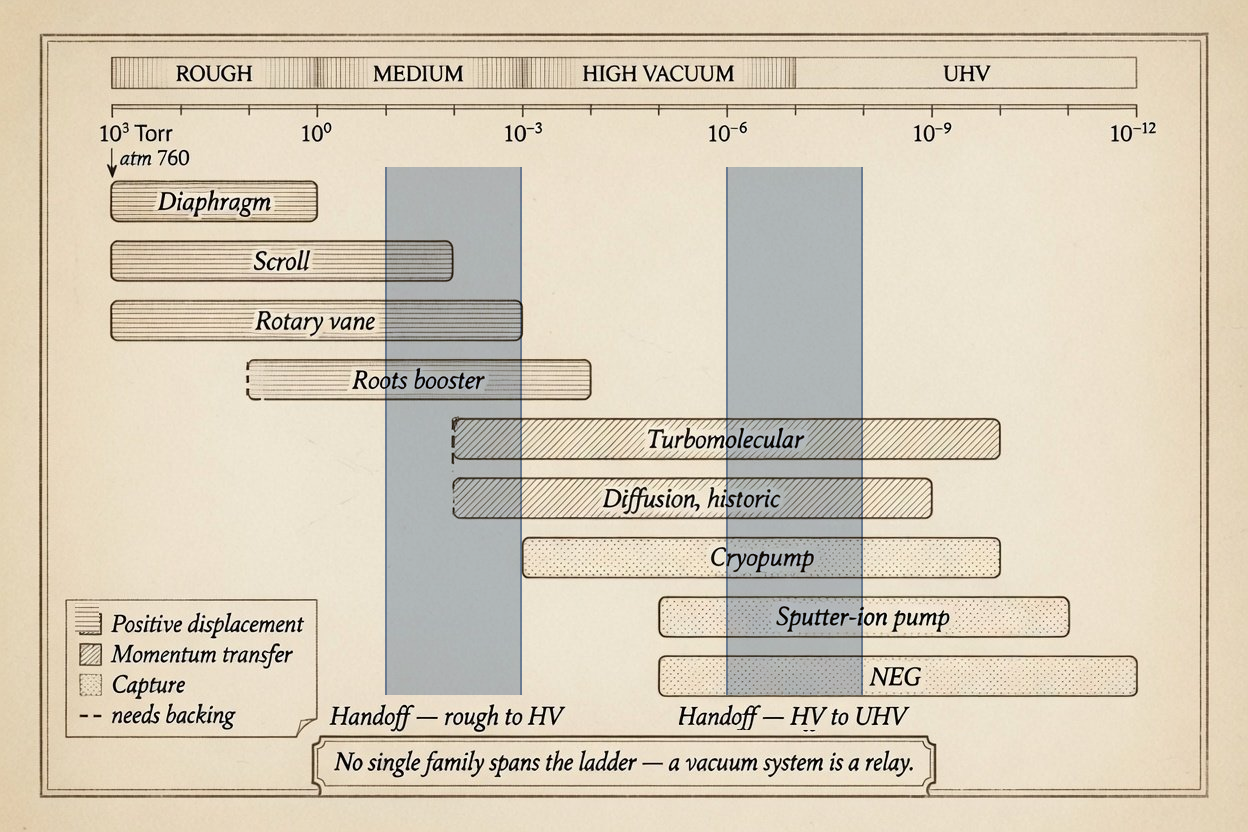

A chamber drawn twice, at rough vacuum, molecules colliding in a dense cloud, and at high vacuum, a few molecules flying straight wall to wall, the mean free path longer than the chamber

RegimeRange (Torr)Mean free pathPumpsGaugesSeals
Rough / primary760 → 1×10⁻³~0.1 µm → 5 cmrotary vane, scroll, RootsPirani, capacitanceelastomer (Viton), KF/ISO
Medium1×10⁻³ → 1×10⁻⁵5 cm → 5 mRoots + backing, turbo (low)Pirani, Penning (low)elastomer or metal
High (HV)1×10⁻⁵ → 1×10⁻⁸5 m → 5 kmturbo, diffusion, cryoPenning, Bayard-Alpertmetal (CF copper)
Ultra-high (UHV)1×10⁻⁸ → 1×10⁻¹¹5 km → 5000 kmion, sublimation, NEG, turboBayard-Alpert, extractormetal (CF), bakeable
Extreme (XHV)< 1×10⁻¹¹> 5000 kmion + NEG + sublimation, cryoextractorCF, hard bakeout

Below ~10⁻³ Torr you are in the molecular regime, and pumping below that line is set by surface capture and wall outgassing. [A]

A transfer pump throws gas out of the chamber: rotary vane, Roots, turbo, diffusion. A capture pump traps gas inside itself: ion, titanium sublimation, NEG, cryo. [C]

Finite capacity. A capture pump has no exhaust, so it has a finite capacity: it saturates and stops, or it is regenerated.

PumpReachesNote
Rotary vane (oil-sealed)~1×10⁻² (1 stage), ~1×10⁻³ (2)oil back-streaming can contaminate
Scroll / diaphragm / screw (dry)~1×10⁻² → 1×10⁻³oil-free, clean primary or turbo backing
Roots (lobe booster)~10 → 0.01high throughput, needs a backing pump under it

All three: [B].

Turbomolecular reaches 1×10⁻⁹ to 1×10⁻¹⁰ Torr on a metal-sealed inlet, ~4×10⁻¹¹ in tandem. A bladed rotor spinning near molecular speed kicks molecules toward the exit. It only works below ~10⁻³ Torr and needs a backing pump on the foreline. Being oil-free, it has replaced diffusion in most labs. [B][C] Diffusion reaches below ~7.5×10⁻¹¹ Torr with enormous throughput (10 to 50,000 L/s) and no moving parts, at the price of possible oil contamination. The dry turbo has mostly displaced it, except where very large throughput is needed. [C]

A turbomolecular pump rotor, stacked angled blades

Where transfer pumps hand off and capture takes over.

Sputter ion pump, the heart of static UHV. A Penning discharge, confined by a magnet, sputters a titanium cathode, and the fresh film getters reactive gas, and noble gas is pumped by being buried in the cathode. Runs continuously, ultimate into the 1×10⁻¹¹ Torr range and below. [B][A] Field: cathode at a few kV, 3–7 kV field, 1–1.5 kGauss magnet, current-to-pressure 3–25 A/mbar, so the pump current also reads the pressure. Hydrogen is pumped reactively by the film, so the pump stays nearly unsaturated for H₂, 50–100% above its nitrogen speed. [A]

Element typeNoble-gas stabilitySpeed vs diodeNote
Diode (Ti cathodes)poor, “argon instability”100%best vacuum and electrical stability
Noble diode (one Ta cathode)stable~80%Ta buries noble ions deeper. Costlier
Triode (Starcell)stable~80%higher start pressure, more noise. Long life

Read the bursts. The diode pump’s argon instability has a recognisable signature: periodic pressure bursts as buried argon is released and re-implanted, climbing a decade or more, then falling on its own. If you must pump argon, run a noble diode or triode. [A]

Titanium sublimation (TSP). A filament sublimes a fresh getter film on the walls, which pumps by chemisorption. Used below ~1×10⁻⁴ Torr, bakeable to 400–450°C, always paired with an ion pump. Pumps active gas only, reacts with O₂, N₂, dissociates and diffuses H₂, nothing for noble gases or methane. Sticking probability: H₂ 0.01–0.05, CO 0.4–0.6 at room temperature, higher cold. [A]

Non-evaporable getter (NEG). A getter alloy (St101 Zr-Al, St707 Zr-V-Fe) or a thin film (TiZrV), activated by bakeout, pumping right at the wall, the accelerator coating. Ultimate below 1×10⁻¹² mbar. CERN reached low 1×10⁻¹⁴ Torr with NEG + TSP + ion pump together. Activation: St101 ~700–740°C, St707 below 450°C, TiZrV film 180°C/24 h (so it works on aluminium chambers). Chemisorbs CO, CO₂, H₂O, N₂, O₂ (O₂ irreversibly), and H₂ reversibly. No Ar, He, Kr, Xe. [A]

Always paired. Neither TSP nor NEG pumps noble gas or methane. Every getter system carries an ion pump alongside it to mop up the argon and the methane.

Cryopump. Surfaces at 10–20 K freeze and trap the gas, effective ~1×10⁻⁶ to 1×10⁻⁹ Torr, ultimate ~7.5×10⁻¹⁰, speed ~1200–4200 L/s. Strong on water and atmospheric gases, weak on helium. Hydrogen pumps on the charcoal stage, with finite capacity, and the finite storage means it must regenerate. [C]

NeedReachPump
rough out from atmosphere760 → 1×10⁻³rotary vane, scroll, Roots
high vacuum, clean1×10⁻⁵ → 1×10⁻¹⁰turbomolecular (+ dry backing)
high vacuum, huge throughput1×10⁻⁵ → 1×10⁻¹⁰diffusion
static UHV, all gases1×10⁻⁸ → 1×10⁻¹¹ion pump (noble diode for argon)
push into XHV< 1×10⁻¹¹NEG + TSP + ion, or cryo

Below 1×10⁻⁸ Torr, noble gases need an ion pump alongside any getter.

Sources · 10
  1. [A] Regimes, combine technologies, Cornell/USPAS, Yulin Li, Vacuum Science
  2. [A] Ion pump field / current / element types, CERN, Sputter-Ion Pumps (Schulz)
  3. [A] Hydrogen pumping, argon instability, arXiv 2006.02721
  4. [A] TSP sticking, getter pumping, Benvenuti, CERN
  5. [A] NEG ultimate, 1×10⁻¹⁴ with combined pumping, Benvenuti et al., Vacuum
  6. [B] Rotary vane / Roots / turbo ultimate, Kurt J. Lesker
  7. [B] Dry pumps, turbo vs diffusion, ion pumps, Leybold
  8. [B] Triode / Starcell, Agilent, CERN Accelerator School
  9. [C] Turbo / molecular regime, Ideal Vacuum
  10. [C] Cryopump figures, Vac Aero

Rated [A] primary, [B] manufacturer, [C] trade (cross-checked). The ion pump rests on primary sources. Cryopump round figures are typical orders of magnitude.
