Clean Has No Unit

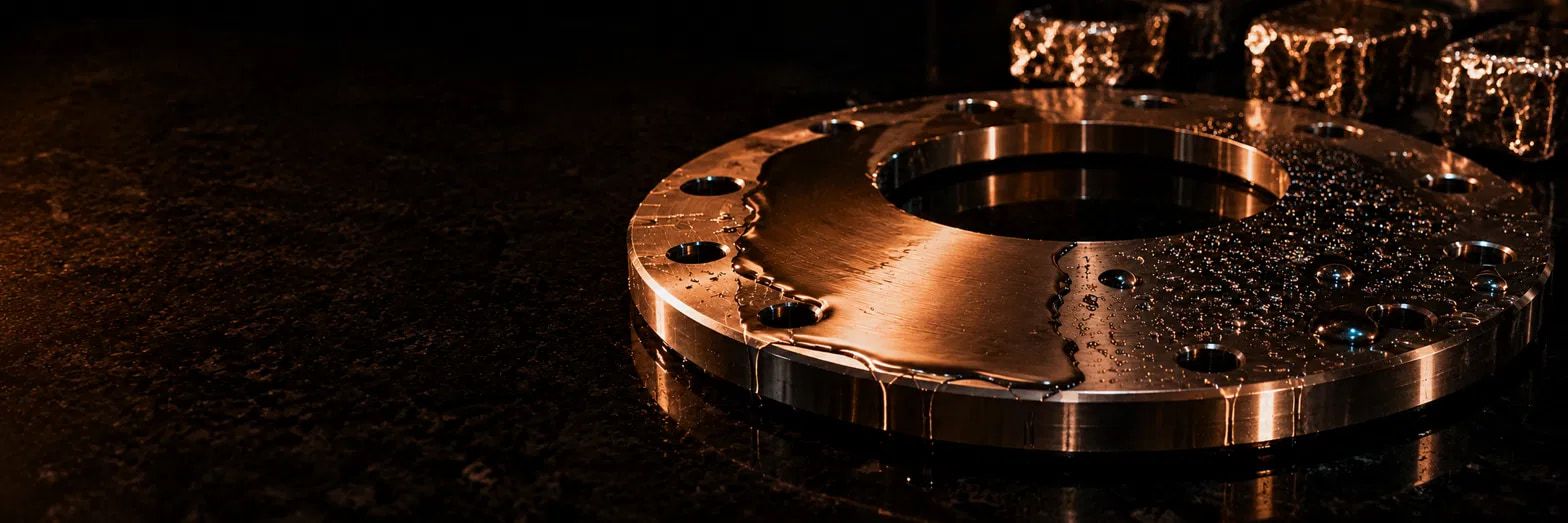

A purchase order carries a line that reads UHV clean. No number follows the two words. The part arrives ten days later, wrapped in aluminium foil inside a heat-sealed bag, with a certificate that repeats the two words in a different font. Somewhere between the machine shop and the flange, a person decided what clean meant that week. The order never said.

The same two words mean nine things, depending on who reads them. A contractor who cleans oxygen pipelines, a contamination control engineer on a satellite, a technician rinsing a niobium cavity at a hundred bar, a fab engineer counting iron atoms on a wafer, a physicist etching the oxide off a resonator: each of them says clean, each of them means a number, and the numbers sit seven decades apart. This essay lines them up on one scale, names the instrument behind each one, and ends with the number a vacuum buyer could write on the order.

Clean is a relation between a surface and the process that surface will undergo. A surface is clean when what it carries stays below the threshold at which the process fails. Three terms: a quantity, a species, a failure mode. Change the process and the same surface changes status. Two standards already say this in their own words. The aerospace cleanliness standard IEST-STD-CC1246E puts its emphasis on contaminants that impact product performance. The European space standard ECSS-Q-ST-70-01C, revised in October 2025, defines a contaminant as unwanted matter that can affect or degrade performance or lifetime. The performance decides. The surface reports.

What a surface carries sits on two axes. The molecular axis is a surface density, molecules per square centimetre, readable in monolayers, about 1e15 small molecules per square centimetre for a full one. The particulate axis is a count per area by size, or a fraction of the area covered. Every trade reads one axis with one instrument and gives the reading its own name. The parts per billion, the milligram per square metre, the ISO class and the mbar litre per second per square centimetre are four projections of the same two quantities.

Line the molecular thresholds up on one scale and the trades sort themselves.

Oxygen service sits at the top. A component ordered to CGA G-4.1 arrives with at most 220 milligrams of non-volatile residue per square metre. Older editions accepted about 500. For a hydrocarbon oil of ordinary molar mass, that is a few hundred monolayers. The enemy is ignition by adiabatic compression, and a few hundred monolayers of oil under a few hundred bar of oxygen is a fuel load. The test is a solvent rinse weighed on a balance, a black light, a wipe and a dew point. NASA’s oxygen ground test systems below 5,000 psi trip an approval at 5 milligrams per tenth of a square metre and a forced re-clean at 20.

Space hardware sits a decade below that. IEST-STD-CC1246E writes residue in milligrams per tenth of a square metre. The old Level A, now called R1, is one milligram: about ten monolayers of oil, give or take a factor of two on the footprint of the molecule. The same standard keeps counting down to ten nanograms, five decades below R1. The enemy is a film that arrives on an optic or a radiator after launch, when nobody can wipe it. Space is the trade that pushed the residue scale furthest in both directions, and its parts are bought, shipped and verified by people other than those who will suffer the film.

LIGO sits at A/50. The interferometer buys its piece parts to the aerospace standard, a fiftieth of the old Level A, a tenth of a monolayer, and its 2010 specification still asks for assembly in a Class 100 cleanroom per FED-STD-209, a federal standard withdrawn in 2001 when ISO 14644-1 replaced it. The enemy is a heavy hydrocarbon on a mirror, which the laser reads as phase noise.

Then the wafer. The semiconductor roadmap wrote its surface metal limit at 1e10 atoms per square centimetre after 2009, one hundred thousandth of a monolayer, and its organic limit at two nanograms per square centimetre. Read from two directions by two industries that never cite each other, the finest level of the space standard and the metal target of the fab meet at 1e10 per square centimetre.

Seven decades. Each trade sits at the top of one column and is absent from the others. The oxygen contractor’s best work fails any space part. The fab’s number would bankrupt the oxygen contractor. Both numbers are right, because the failure modes differ.

The vacuum trade reads a flux. Accelerator vacuum measures outgassing, gas leaving a square centimetre per second, in mbar litre per second per square centimetre. The number describes an inventory only after a conversion that nobody performs on the shop floor. One mbar litre holds 2.5e19 molecules at room temperature. A rate of 1e-12 mbar·L/s/cm² is 2.5e7 molecules per second per square centimetre, or 0.8 monolayer per year. The ITER Vacuum Handbook sets its impurity limit for torus components at 1e-9 Pa·m³/s/m² at 100 °C. Convert it. One monolayer per year, to the rounding. Chiggiato’s table gives austenitic stainless steel after a 150 °C bake at 3e-12 for hydrogen, three monolayers per year, drawn from the bulk of the metal rather than from the surface. His warning covers every unbaked figure ever quoted: without the pumping time, the number means nothing.

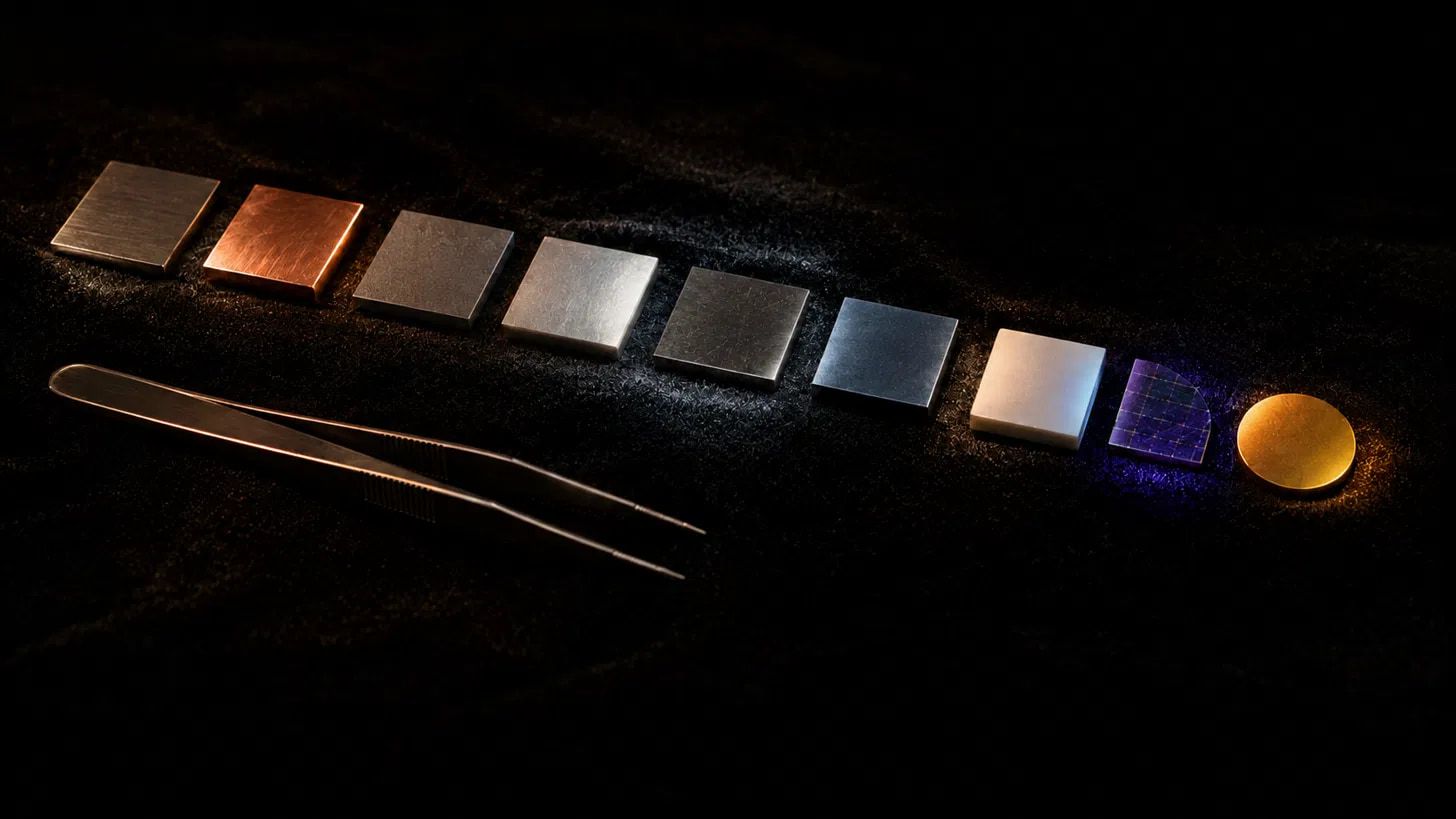

CERN qualifies a cleaning procedure without an RGA. Standard coupons are contaminated on purpose, cleaned by the candidate recipe, and read by XPS within thirty minutes of leaving the air. Carbon at or under 40 atomic percent on stainless steel passes. The number is an atomic fraction inside the first few nanometres, roughly one monolayer of adventitious carbon, and the recipe behind it has been public for twenty years: detergent at 50 to 60 °C under ultrasound, demineralised water rinse below 5 microsiemens per centimetre, oven at 80 to 100 °C or filtered nitrogen. The first check happens on the shop floor, by eye. The rinse water either wets the steel in a continuous sheet or breaks into drops. A sheet that breaks fails the part before any instrument sees it.

LIGO is the one house that reads both axes in both units. Its parts are bought in aerospace units and qualified in vacuum units. After cleaning and a vacuum bake, the part cools and an RGA reads it. The rule fits on a page. The 43 peak stays at or below a tenth of the 44 peak. Everything above 44 stays at or below a hundredth of it. The calibrated sum of five masses, 41, 43, 53, 55 and 57, the masses the laboratory found indicative of every heavy hydrocarbon, stays below 4e-10 torr litre per second for a suspension structure, and a small load reads background, near 2e-12. No subtraction of an empty chamber. An argon and krypton leak calibrates the scan. Written in 2008 and still in force.

Who does the gesture splits the nine trades into two families.

Space, oxygen and semiconductor chamber parts write the number and buy the gesture. A verification industry stands between them and their suppliers, with balances, particle counters, plasma mass spectrometers and photographs of filters. A fab’s chamber liners, shields and showerheads leave the building and come back from a parts cleaning contractor, with extractable metals reported in nanograms per square centimetre and particles counted in the extraction liquid down to 30 nanometres. The acceptance values stay between the tool maker and the contractor. I found none of them in public. The oxygen trade’s numbers are printed in a standard anyone can buy.

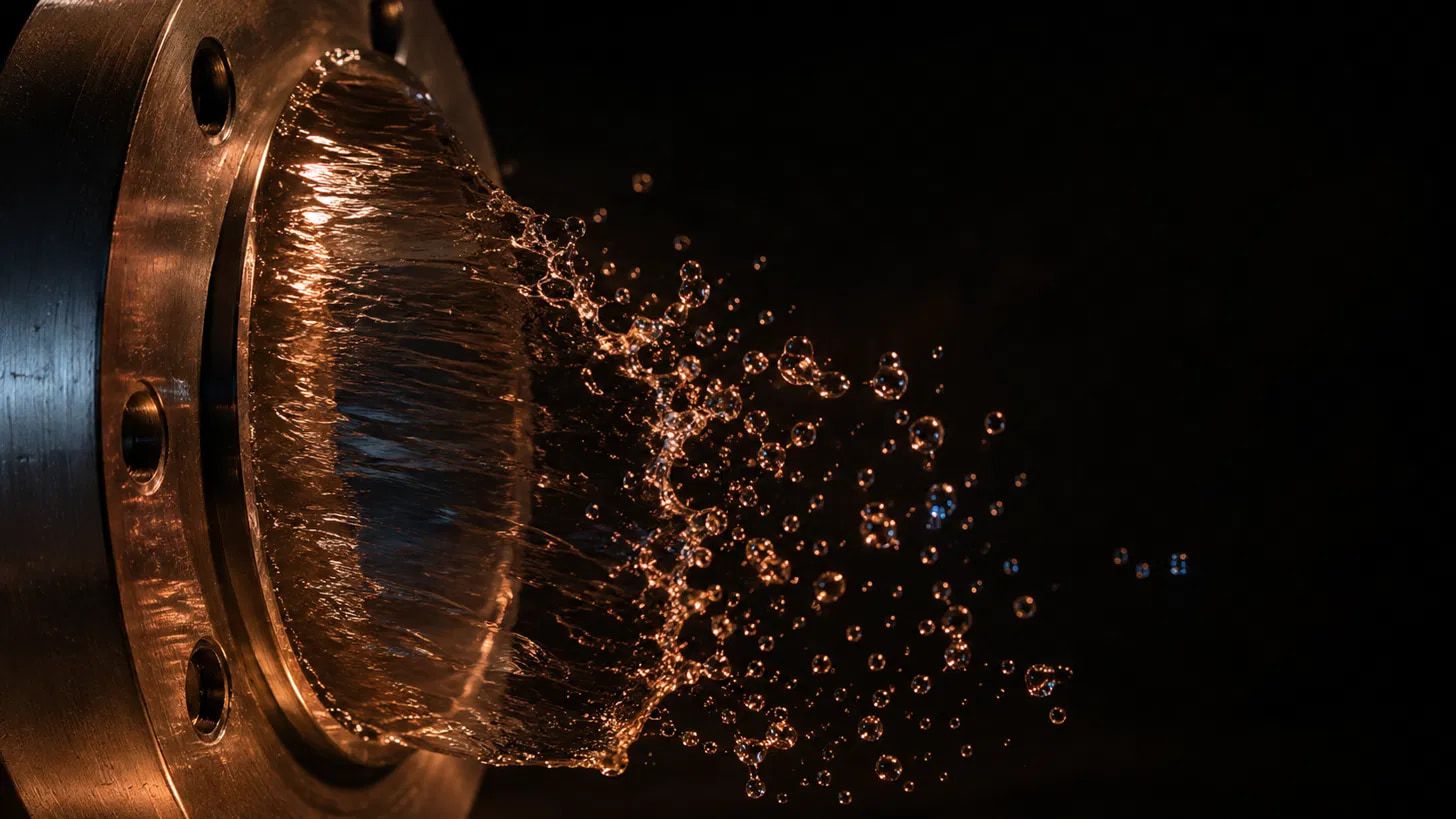

Accelerators, SRF, the wafer fab, the quantum lab and LIGO keep the gesture in house and let the process itself verify it. The niobium cavity is rinsed at a hundred bar of ultrapure water, assembled in an ISO 4 room, and judged in the vertical test, where field emission from a micron particle shows up as radiation and a quality factor that collapses. Two SRF authors wrote in 2012 that the rinse protocols had evolved by loose empiricism rather than quantitative process development, and that pressure, nozzle, distance and sweep rate differed from one laboratory to the next. The judgement is severe and reliable. The recipe is local.

The frontier buys. A fusion startup or a quantum hardware company owns no surface treatment workshop. It orders chambers, bellows and feedthroughs from the same catalogues as everyone else, and its purchase order carries the two words. ITER wrote its numbers in 2019: torus components at 1e-9 Pa·m³/s/m² of impurities, cutting fluids under 200 ppm each of halogens, phosphorus and sulfur, halogenated solvents forbidden at every stage, handling areas at five million particles above half a micron per cubic metre, a class between ISO 8 and ISO 9, ten thousand times looser than the SRF room. The ITER vacuum group runs outgassing tests on candidate materials almost continuously, and its group leader has noted that a material fit for a fab is not automatically fit for a tokamak, and the reverse. I have not found an equivalent public document from a private fusion company.

Quantum inverts the quantity. In a niobium resonator on silicon, the loss that limits coherence lives in a few nanometres of oxide at the metal-air and substrate-air interfaces. A Berkeley team measured a median loss tangent of 1.07 parts per million at the single photon level, removed the substrate oxide by selective etching and read 0.48, thinned the niobium oxide from 4.8 to 1.6 nanometres and read 0.19. The quality factor rose from 0.9 million to 5.3 million. The contaminant was the material’s own skin. Clean, on that bench, means fewer than zero monolayers of oxide.

The gesture itself changed in 2025. Two solvent families carried precision degreasing for sixty years, the chlorinated and the fluorinated. On 17 December 2024 the US EPA finalised a rule prohibiting all uses of trichloroethylene, most of them from 15 September 2025, with the exemption dates postponed six times since and a final rule on extensions on the agenda for October 2026. 3M had announced in December 2022 its exit from PFAS manufacturing, and the last order date for its Novec hydrofluoroethers fell on 31 March 2025. Production stopped at the end of that year. The vapour degreaser lost both fluids in twelve months. The aqueous recipe CERN published for accelerator parts, detergent, ultrasound, demineralised rinse, hot air, has become the default of a trade that used to look down on water. A ring laser gyroscope team wrote in June 2026 that cleaning had to enter its next procurement as an explicit specification, with certificates and a record of every electropolishing, ultrasonic and bake step, after a titanium cavity taught it the lesson the hard way.

The unit exists. ISO 14644-10 grades surface cleanliness by chemical concentration on a logarithmic scale: grade N stands for ten to the power N grams per square metre, from 0 down to minus 12, in steps of a tenth. ISO 14644-9 does the same for particles. Both were revised in 2022. ISO 14644-13, the guide to the cleaning methods that reach those grades, came out in its second edition on 25 February 2026. On that scale the oxygen part sits at minus 0.3, the space part at minus 2, the LIGO part near minus 4, the wafer’s organics near minus 5, its metals at minus 8. One number, one scale, thirteen decades, and a method guide six months old. The European space standard cites the series. The ITER Vacuum Handbook cites neither part 9 nor part 10. The LIGO part-qualification specifications cite FED-STD-209 and IEST-STD-CC1246D instead. The CERN school’s cleaning lecture cites neither. The vacuum trade has a surface unit on offer and keeps its flux.

The flux can be translated. One monolayer per year is 1e-12 mbar·L/s/cm², and LIGO’s five masses give it a species. A part is UHV clean when its purchase order says how many monolayers of what may leave it per year, at what temperature, read by which instrument, against which empty-chamber scan. The oxygen contractor already writes his number. The satellite engineer already writes hers. The startup buying its first chamber can write one too, and the supplier who cannot meet it will say so before the flange closes.

Four bets, dated, so that this essay can be wrong in public. By the end of 2028, at least one private fusion company publishes a supplier specification with a numeric cleanliness acceptance, an outgassing rate, a residue level or an ISO 14644-10 grade. By the end of 2030, no big-science vacuum handbook cites the surface grades of ISO 14644-10. By the end of 2026, the EPA’s rule on compliance-date extensions leaves the prohibition of trichloroethylene in open-top vapour degreasing in force. By the end of 2028, a superconducting-qubit foundry or a substrate supplier publishes an incoming acceptance value for surface oxide thickness in nanometres, read by XPS.

A clean part is a part whose number is written down.

points of rendezvous

Dates this essay can be checked against:

• October 15, 2025. ECSS-Q-ST-70-01C Rev.1 published.
• December 31, 2025. End of 3M PFAS manufacturing, Novec fluids included.
• February 25, 2026. ISO 14644-13:2026 published, edition 2.
• May 18, 2026. Sixth postponement date of the TCE section 6(g) exemption provisions.
• October 2026. EPA final rule on compliance-date extensions for TCE, PCE, methylene chloride and carbon tetrachloride.
• December 18, 2026. TCE disposal-to-wastewater prohibition compliance date for processors.
• December 2026. ECHA SEAC opinion on the universal PFAS restriction.
• 2027. ISO 14644-9:2022 and ISO 14644-10:2022 reach the five-year systematic review window.
• September 15, 2028. TCE as a processing aid in nuclear fuel manufacture, prohibition compliance date.
